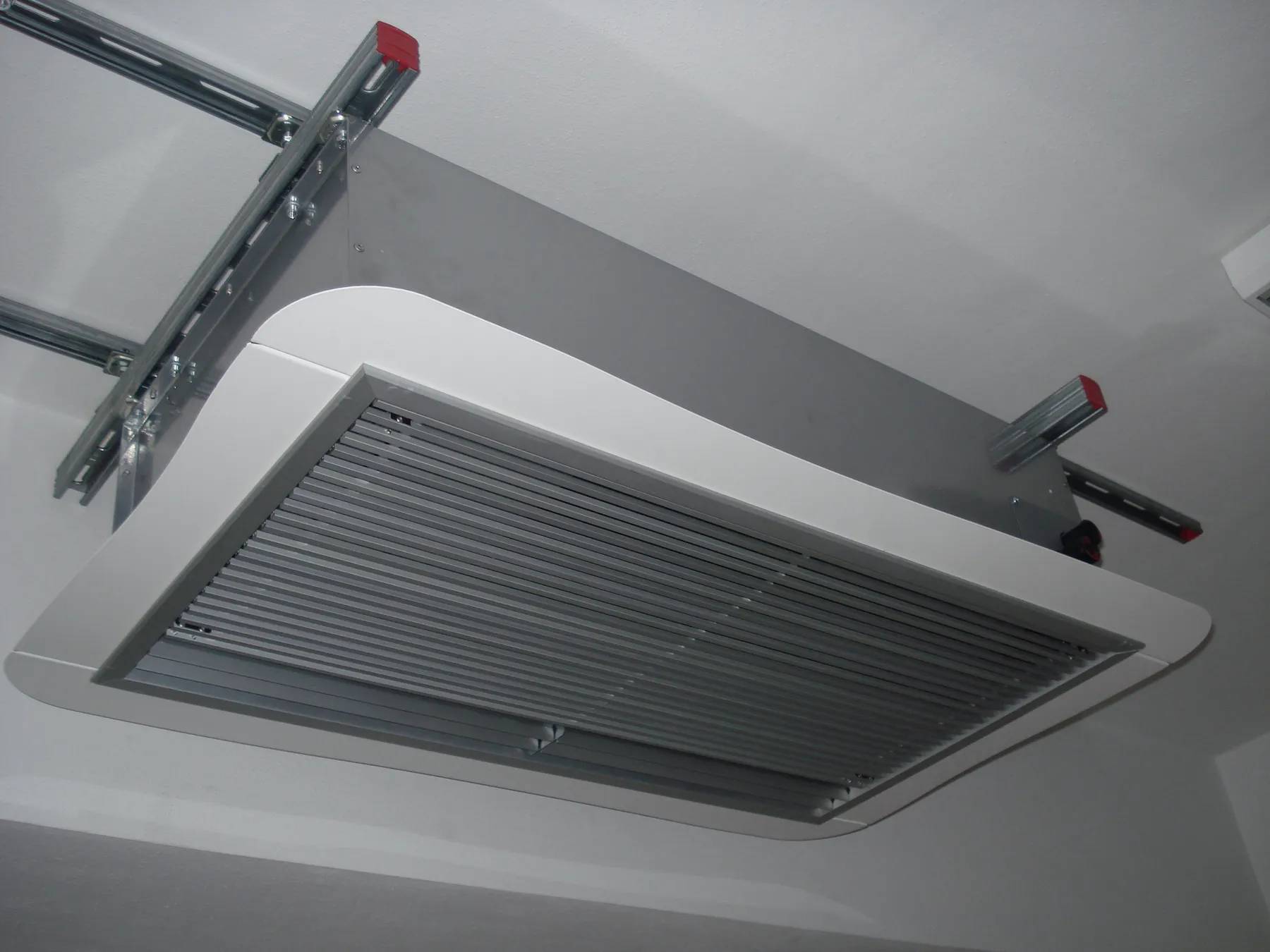

A doorway that stays open loses cooled air every second it is open, and lets in hot air, dust, insects and street fumes in return. An air curtain fixed above the opening drives a sheet of air downwards at a speed and angle set for the door, and that sheet acts as a barrier while people and goods pass through it. Seven Infra supplies and installs air curtains sized to each opening, and the ventilation fans a building needs alongside them.
What we deliver
| Stage | What we do | Deliverable |
|---|---|---|
| Survey | Opening width and height, door type, wind exposure, ceiling and power available | Survey notes |
| Selection | Airflow, discharge velocity, unit length, ambient or heated, sound level | Equipment schedule |
| Ventilation fans | Extract, supply and roof fans sized to the space where needed | Fan schedule |
| Installation | Mounting to structure, electrical connection, door switch or BMS interface | Progress records |
| Commissioning | Velocity check at floor level, angle set, control sequence tested | Commissioning report |
The unit must throw air to the floor at the full width of the opening, or the barrier fails at the bottom, which is where hot air and dust enter. We size from the opening and the exposure, not from the catalogue length that happens to fit the wall. An opening facing the prevailing wind gets a unit specified for the higher velocity.
Applications
- Restaurants: open kitchens and terrace doors where insects and heat would otherwise reach the dining room.
- Malls: main entrances that stay open through the day, with units in series across wide openings.
- Hospitals: entrances and loading bays where dust and pollutants must be kept out of clean areas.
- Offices: lobby doors on busy streets, with units that switch on from the door contact.
- Retail: shop fronts kept open for trade without losing the cooled air inside.
Ventilation fans
Air curtains hold the door line, and ventilation fans keep the rest of the building moving. We supply and install extract fans for kitchens and washrooms, supply fans for plant rooms and car parks, and roof fans for warehouses, sized to the air-change rate the space needs. Where a building needs fresh air with energy recovery, the ERV page covers it.
Brands
Seven Infra supplies all major air curtain and fan brands sold in the UAE, including Daikin, Mitsubishi Electric, Carrier, Trane, York, Toshiba, LG, Samsung, Gree, Midea, O General and Hitachi, alongside the specialist air-curtain makers. The unit is chosen by the opening: airflow, throw, length, sound level and control interface.
Built for the UAE climate
The temperature difference across a UAE doorway can be 20°C in summer, so the curtain has to hold a larger pressure difference than it would in a milder climate. Units are selected for T3 conditions at 46°C and for the dust load, with washable intake filters and motors rated for continuous duty. Fans carry MOIAT labels where the scheme applies.
Who it is for
Restaurant and retail operators losing cooled air through an open frontage. Mall and hospital FM teams keeping dust and heat out of entrances. Developers and fit-out contractors who need air curtains and fans specified, supplied and installed with the rest of the design solutions package, commissioned through installation and commissioning and covered by maintenance and support.
The equipment
Frequently asked questions
How much energy does an air curtain save?
A correctly sized curtain on a busy doorway cuts the heat entering through the opening by 60 to 80 percent, which reduces the cooling load on the space behind it. We estimate the figure from the survey.
Does an air curtain keep insects out?
Yes, when the discharge velocity at floor level is high enough. Restaurants and food outlets get a unit specified for that velocity.
Can the unit switch on only when the door opens?
Yes. A door contact or a BMS signal starts and stops the unit, and a two-speed control runs it lower when the door is closed. We wire and test the sequence during commissioning.
What openings can you cover?
Single doors, double doors and wide mall entrances with units mounted in series. Openings above 4 metres high need industrial units, which we also supply. Contact us with the opening size and a photo to start.
